Eurosmart Cosmopolitan E Infra-red electronic basin mixer 1/2″ L-Size with mixing device and adjustable temperature limiter

Product Number
36421000
EAN
4005176368523
Colour
chrome
725.94
RRP incl. VAT

GROHE Eurosmart Cosmopolitan E – made in Germany with touchless technology!

With crisp lines lines and curves, this sophisticated mixer with a high spout has a modern look and innovative technology that boosts washing efficiency and comfort. The infrared sensor detects hand movement so water only runs when it’s needed – delivering washing enjoyment while saving precious water – so it’s ideal for the cloakroom at home and in busy public spaces. GROHE EcoJoy also limits consumption to 5.7 l/min – saving precious water and your money. The durable and lustrous GROHE StarLight chrome finish will look pristine for years to come. Plus it’s more hygienic and quick to clean as there is much less skin contact. You can effortlessly adjust the temperature with a small lever and it can be limited with the use of a small enclosed accessory, which cuts energy use and the risk of scalding. This advanced mixer only takes a few minutes to install and its pre-settings are optimised for most washbasins and personal preferences. Cleaning mode is activated by covering the bottom of the sensor with a thumb, which temporarily locks the water flow. There are three modes: product cleaning (the water flow is deactivated), automatic flushing (how often and how long the water flows) and thermal disinfection (the run time). The GROHE Remote Control (36407001), which is sold separately and can be used with other GROHE products with an infrared sensor, enables added functions, including service adjustments and monitoring. The mixer has a solid brass body and comes with a Europlug (EN 50075). For superior bathroom style and functionality try the GROHE Eurosmart Cosmopolitan E!

Key Features

  • with infrared sensor for bi-directional communication for monitoring, configuration and servicing
  • with plug transformer 100-230 V AC, 50-60 Hz, 6 V DC
  • GROHE Long-Life finish
  • GROHE Water Saving mousseur 5.7 l/min
  • flexible connection hoses

  • non-return valve
  • dirt strainers
  • with integrated solenoid valve
  • rapid installation system
  • 7 pre-set programs:
  • auto flush
  • thermal disinfection
  • cleaning mode
  • additional functions and precise settings by remote control 36 407
  • CE approved
  • noise classification 1 in accordance with DIN4109
  • type of protection faucet IP 59K
  • min. recommended pressure 1.0 bar

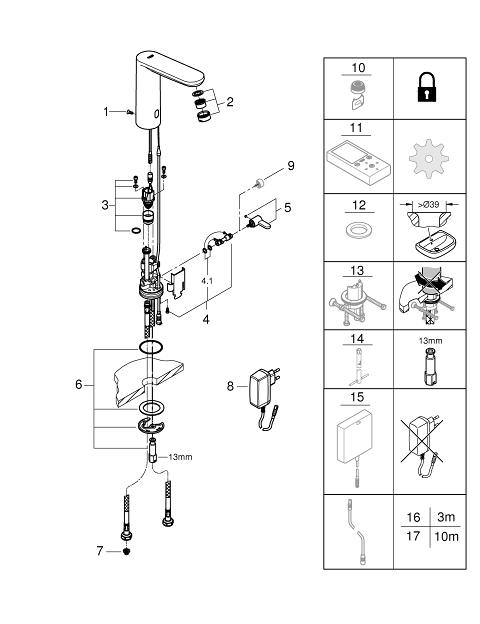

Pos.-nr. Prod. description Order-nr.
* Optional accessories
1 Screw 4283100M
2 Flow restrictor 48159000
3 Solenoid valve 42479000
4 Mixing lever 42401000
4.1 O-Ring 4284000M
5 Mounting set 42400000
6 Non-return valve 4257200M
7 Filter 4241300M
8 Mains adaptor 42388000
9 Flow restrictor 36133000*
10 Remote control 36407001*
11 Escutcheon 36370000*
12 Rotation lock 36276000*
13 Mounting wrench 19017000*
14 Switch mode power supply 36338000*
15 Power extension cable 36340000*
16 Power extension cable 36341000*
17 Waste set with push-open plug 65807000*

Installation Instructions

Products and accessories for the installation
