Rapid SL 3-in-1 set for WC, 1.13 m installation height

Rapid SL 3-in-1 set for WC, 1.13 m installation height

Product Number
3950420A
EAN
4067393034032
Colour
chrome
Download specification
Find Showroom or Installer

Key Features

  • flushing cistern GD 2, 6 - 3 l
  • including WRAS approved filling valve
  • consisting of:
  • Rapid SL element for WC (38 528 001)
  • Arena Cosmopolitan S flush plate, chrome (37 624 000)
  • wall brackets (38 558 00M)
  • including revision shaft 40 911 000 for mounting of small flush plates

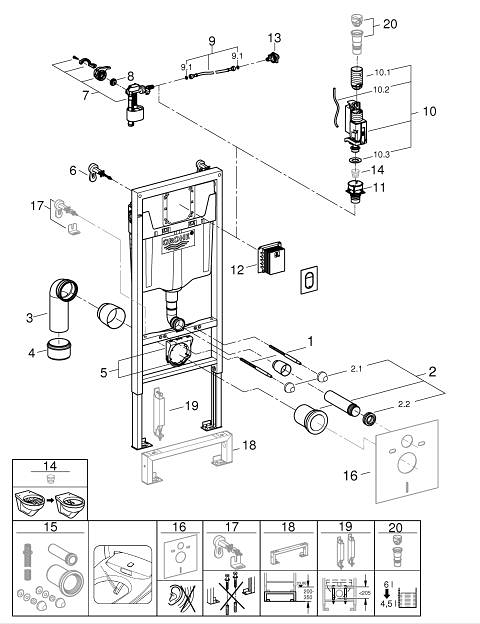

Technical Product Information
Pos.-nr. Prod. description Order-nr.
* Optional accessories
1 Threaded bolt 4276400M
2 WC inlet and outlet connecting set 37311K00
2.1 Basin fastening 43511SH0
2.2 Connector 37119000
3 PP-outlet bend Ø 90 mm 42327000
4 4" outlet adaptor for Rapid SL 42242000
5 Support for outlet bend 42243000
6 Front wall brackets 3855800M
7 Filling valve for Bau and Euro Ceramic 42648000
8 Membrane 4265000M
9 Connecting hose 42233000
9.1 O-Ring 0319100M
10 Dual Flush discharge valve AV1 42320000
10.1 Extension for overflow pipe 42313000
10.2 Pneumatic hose 42319000
10.3 Sealing washer 42310000
11 Valve seat 42599000
12 Inspection shaft for small flush plates 40911000
13 Water connection 48561000
14 Flow restrictor 42300000*
15 Retrofit kit for shower toilets Sensia Arena and IGS 40899000*
16 Set for noise protection 37131000*
17 Xtra wall brackets, flexible placing 38733000*
18 Extension for Rapid SL and Rapid SLX 38629001*
19 Accessory 38779000*
20 4.5 l adapter for GD2 42333000*
