Rapid SL Element for WC, 1.13 m installation height

Product Number
38680001
EAN
4005176863509
Rating
561.39 RRP incl. VAT

Product Description

  • with flushing cistern GD 2 , 6 l - 9 l
  • for on-the-wall installations or studded walls
  • powder coated steel frame, self-supporting
  • for dry-cladding, completely pre-assembled
  • with fixed connections
  • quick adjustment, lockable
  • fixing material
  • NF approved
  • 2 WC fixing bolts
  • fixing device for ceramic
  • WC ceramics with small bearing area (less than 205 mm)
    require additional accessory 38 779 000
  • distance of fixing bolts 180/230 mm
  • PVC outlet bend 100 mm
  • spacer Ø 80 mm
  • inlet and outlet connecting set
  •
  • flushing cistern GD 2, 6 - 9 l, containing following features:
  • factory set 6 l and 3 l
  • pneumatic discharge valve offering 2 modes of
    operation: dual flush or single flush
  • water supply from left/right or back
  • low noise (group I acc. to
    German Noise Specification)
  • insulated against condensation
  • ½" water supply connection including integrated
    angle valve and push fit flexible hose union
  • no tools required for the installation of the inspection shaft
    including protection during construction phase
  • inspection shaft for vertical or horizontal use
    allows for flush plate to be installed vertically or horizontally.
  •
  • including wall brackets 38 558 00M for on-the-wall installation
  • for mounting of small flush plates please order
    revision shaft 40 911 000 (sold separately)

Technical Information

CAD Data

Spare Parts

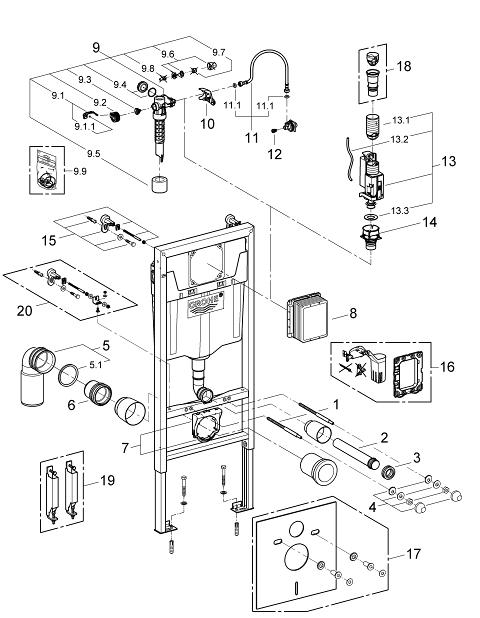

Pos.-nr. Prod. description Order-nr.
* Optional accessories
1 Threaded bolt, 2 pcs.f.Uniset 4276400M
2 Flush pipe 300 mm 43352000
3 Connector 37119000
4 Basin fastening 43511SH0
5 Elbow 42216000
5.1 O-Ring 4207700M
6 Distance pipe 3" 42766000
7 Support for outlend bend 42243000
8 Inspection shaft 66791000
9 Filling valve 37095000
9.1 Lever 43734000
9.1.1 Sealing washer 4377000M
9.2 Valve head 43536000
9.3 Membrane 4375800M
9.4 Screw cap 43735000
9.5 Valve FLOAT, 5 pcs.. 4379100M
9.6 Dummy plug and escutcheon cap 37125000
9.7 Compression nut 43258000
9.8 Throttle 42356000
9.9 Repl.kit f.seal 43722000*
10 Support device 42246000
11 connecting hose 42233000
11.1 O-Ring 0319100M
12 Headpart 42385000
13 Dual Flush discharge valve AV1 42320000
13.1 Extension for overflow pipe 42313000
13.2 Pneumatic hose 42319000
13.3 Sealing washer 42310000
14 Valve seat for GD2 42315000
15 Rapid SL Front wall brackets 3855800M
16 GROHE Fresh retro-fit set 38796000*
17 Set for noise protection 37131000*
18 4.5 l adapter for GD2 42333000*
19 Accessory 38779000*
20 Rapid SL mounting angle 38733000*
