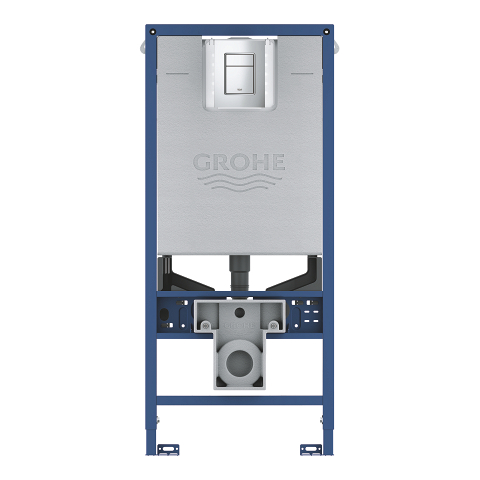

Rapid SLX 3-in-1 set for WC, 1.13 m installation height
Key Features
- flushing cistern GDX, 6 l
- including WRAS approved filling valve
- consisting of:
- Rapid SLX element for WC (39 596 000) with integrated power socket
- Skate Cosmopolitan S flush plate, chrome (37 535 000)
- wall brackets (38 558 00M)
- including flow manager
Technical Product Information
CAD Data

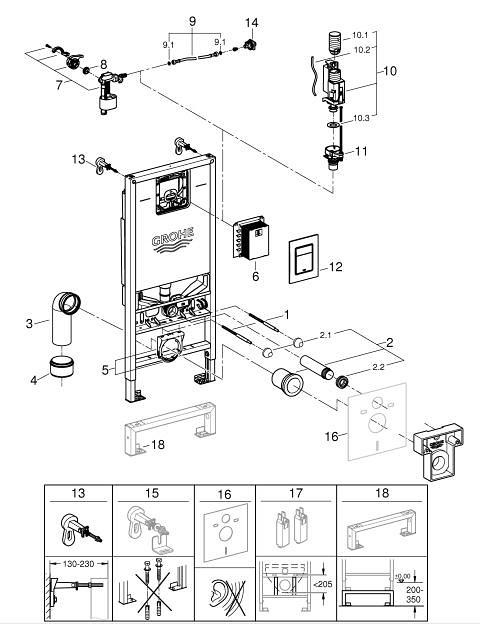

| Pos.-nr. | Prod. description | Order-nr. |
|---|---|---|
| * Optional accessories | ||
| 1 | Threaded bolt | 4276400M |
| 2 | WC inlet and outlet connecting set | 37311K00 |
| 2.1 | Basin fastening | 43511SH0 |
| 2.2 | Connector | 37119000 |
| 3 | PP-outlet bend Ø 90 mm | 42327000 |
| 4 | 4" outlet adaptor for Rapid SL | 42242000 |
| 5 | Support for outlet bend | 42243000 |
| 6 | Inspection shaft for small flush plates | 40911000 |
| 7 | Filling valve for Bau and Euro Ceramic | 42648000 |
| 8 | Membrane | 4265000M |
| 9 | Connecting hose | 42233000 |
| 9.1 | O-Ring | 0319100M |
| 10 | Dual Flush discharge valve AV1 | 42320000 |
| 10.1 | Extension for overflow pipe | 42313000 |
| 10.2 | Pneumatic hose | 42319000 |
| 10.3 | Sealing washer | 42310000 |
| 11 | Valve seat | 42593000 |
| 12 | Flush plate | 37535000 |
| 13 | Front wall brackets | 3855800M |
| 14 | Water connection | 48561000 |
| 15 | Xtra wall brackets, flexible placing | 38733000* |
| 16 | Set for noise protection | 37131000* |
| 17 | Accessory | 39607000* |
| 18 | Extension for Rapid SL and Rapid SLX | 38629001* |
